<1050mm
Granite, limestone, pebbles, iron ore, and other minerals and rocks with a compressive strength not exceeding 300 MPa
Product Description
The European-style impact crusher is a type of crushing machinery that utilizes impact energy to crush materials. This crushing equipment can process various materials with a particle size not exceeding 1,000 mm and a compressive strength not exceeding 350 MPa. It features a high crushing ratio, high crushing efficiency, and ease of maintenance. The product produces cubic-shaped particles, making it an ideal processing equipment for aggregates used in high-grade highway pavements and hydropower construction. Due to its stable performance and excellent results, the impact crusher is widely used in fields such as highway construction, water conservancy projects, and the processing of crushed stone for construction.
How to choose suitable European-style impact crusher?
1.High crushing ratio and one-time shaping, reducing production line cost
2.Excellent cubic particle shape with low flakiness, high market value
3.Hydraulic opening cover for easy maintenance and short downtime
4.Wear-resistant blow bars and impact plates, long service life
5.Stable performance, low vibration and low noise
6.Adjustable discharge size to meet different production requirements
7.Compact structure, small footprint and easy installation
8.Ideal for limestone, construction waste, granite and medium-hard materials
9.High efficiency, low energy consumption and low operating cost
How is works

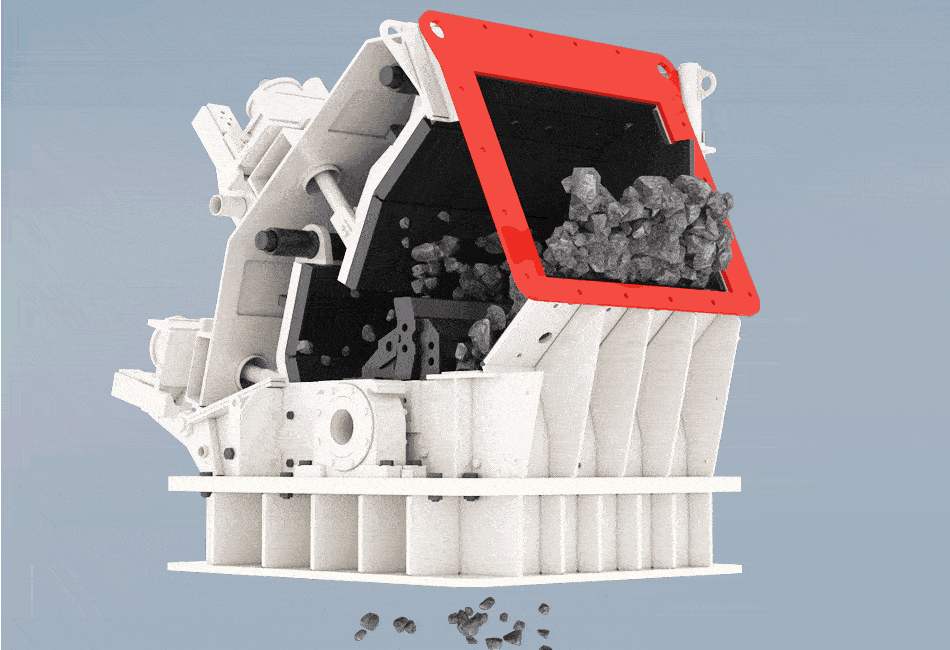

European-style impact crusher crushes materials mainly through high-speed impact, counterattack and friction.The motor drives the rotor to rotate at a high speed through the belt. When materials enter the crushing chamber, they are violently struck by the blow bars on the rotor and thrown to the counterattack plate instantly for secondary crushing.Materials are repeatedly impacted and crushed between the blow bars, counterattack plates and inner liners until they reach the required discharge size.Qualified fine materials are discharged from the bottom gap, realizing efficient crushing and shaping at the same time.
Technical Specifications
| model | Inlet size(mm) | Maximum(mm) | processing capacity(t/h) | power(kw) | weight(kg) |
|---|---|---|---|---|---|
| LF150 | 820X980 | ≤500 | 100-200 | 90-200 | 12000 |
| LF250 | 960X1360 | ≤700 | 200-400 | 180-250 | 17000 |
| LF350 | 1050X1700 | ≤800 | 300-500 | 200-400 | 24000 |
| LF450 | 1350X1950 | ≤900 | 350-580 | 220-440 | 29600 |
Particle Size
