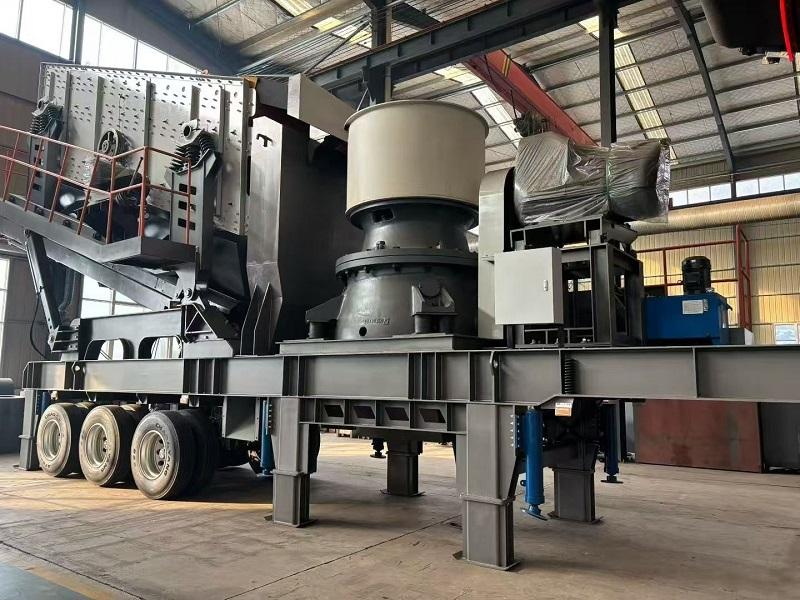

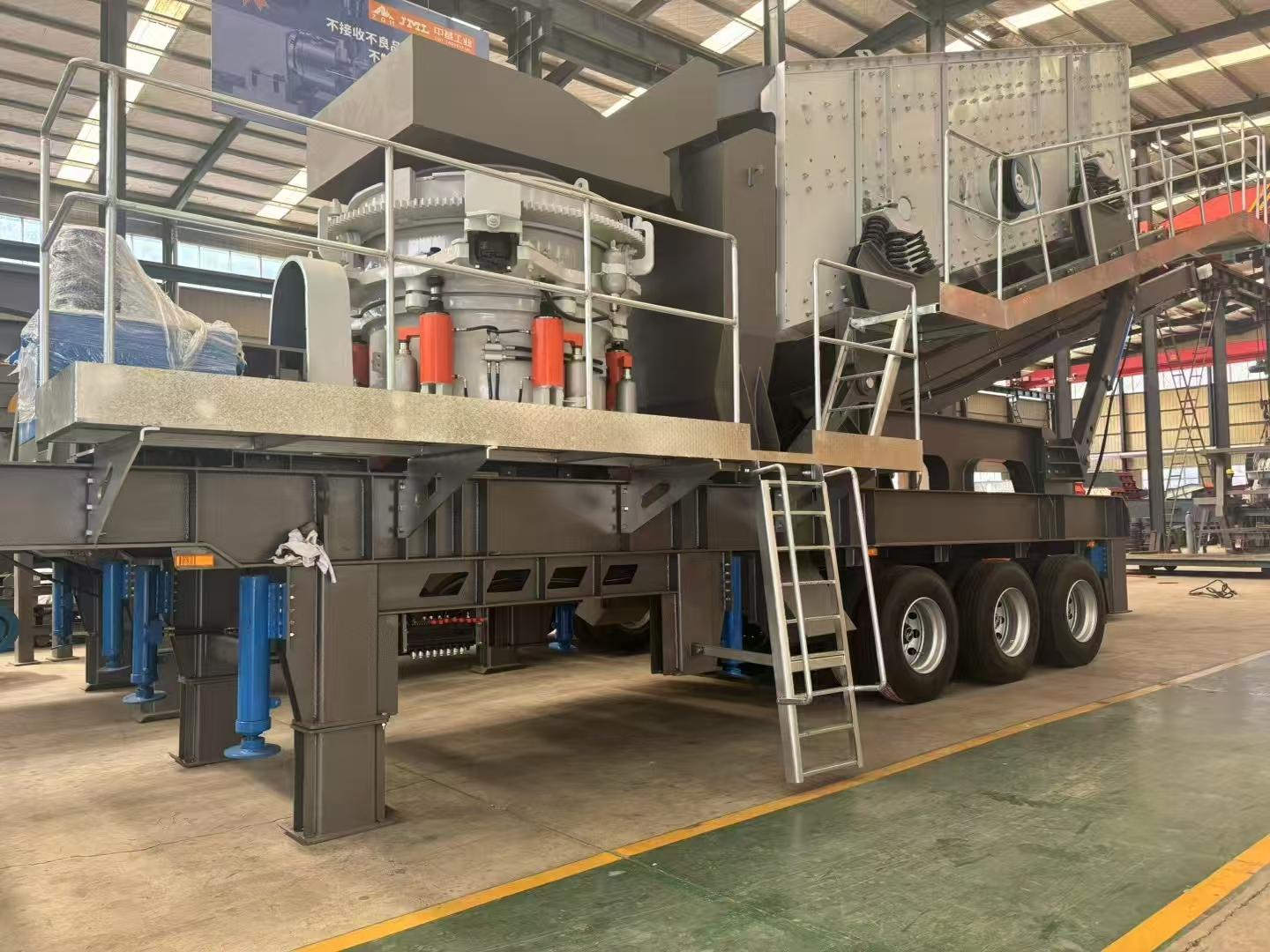

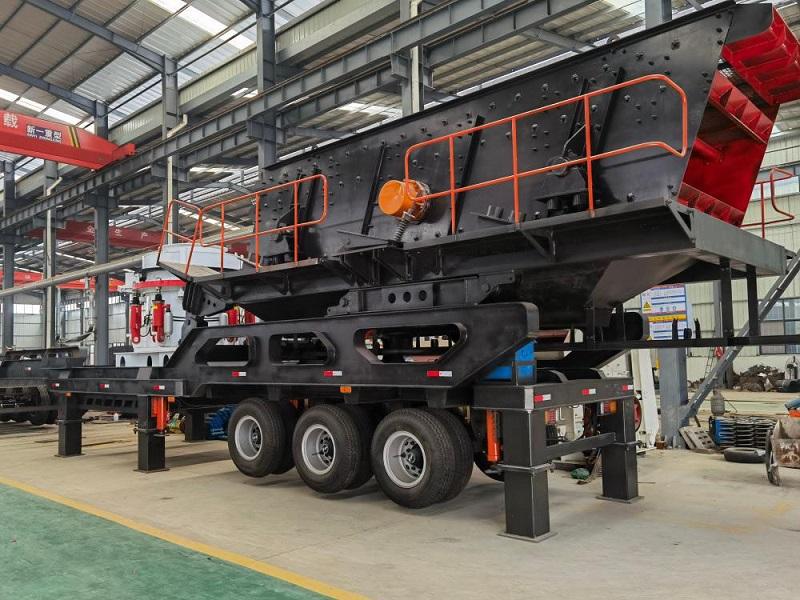

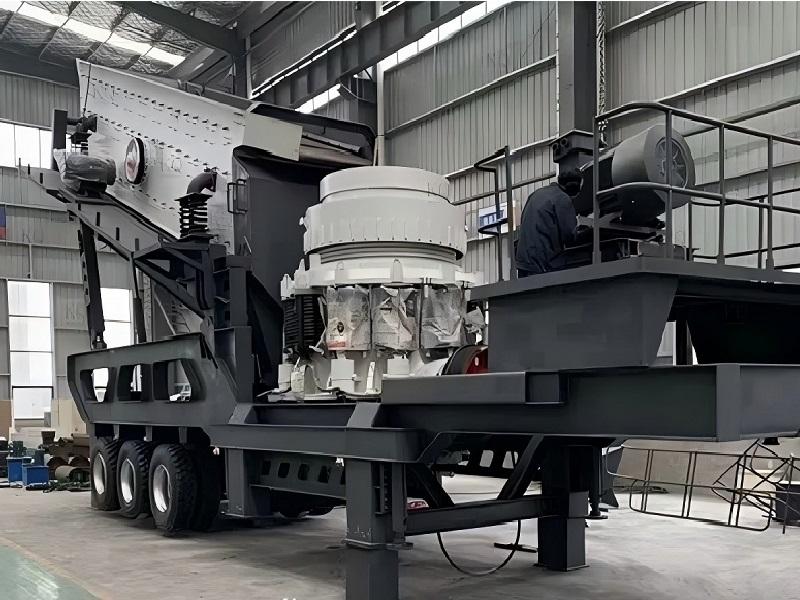

Mobile Cone Crushing Plant
Mobile Cone Crushing Plant
Mobile Cone Crushing Plant
Mobile Cone Crushing Plant
Mobile Cone Crushing Plant
Feed size

≤52-360mm

Suitable Materials

Construction waste, granite, basalt, river pebbles, limestone, quartz, diabase, gold ore, iron ore, etc.

SHARE THIS:

Product Description

Cone mobile crushing station is reliable in performance, convenient in maintenance, equipped with high-performance cone crusher, high crushing efficiency, multi-function, excellent crushing product quality, and light and reasonable structural design. Reliable and stable quality assurance, meet the requirements of crushing and screening of coarse, medium and fine materials, and establish a good quality reputation for the majority of new and old customers at home and abroad.

How to choose suitable Mobile Cone Crushing Plant?

1. Familiar with the modular design, the equipment adopts a new modular design concept, a common frame for multiple models, and it is easy to realize the free exchange between different host systems of the same model. Only changing the host system can easily meet different production requirements, and diversified design is more convenient.

2. The configuration scheme is flexible and diversified, and the equipment space system is fully configured. It can work alone in a section of crushing, and can also work together with multiple equipment such as mobile jaw crusher and mobile sand making machine to meet the needs of multiple crushing and screening combination.

3. Comprehensive combination, personalized scheme customization conical mobile crushing station includes seven modules and 24 types of models, comprehensive combination, output, feeding and unloading can be selected according to the needs of the host cone crusher, personalized scheme customization highlights the humanized design.

4. Efficient and intelligent, easy to operate, flexible and flexible parking system can quickly enter the working mode. At the same time, the hydraulic system can control the movement of equipment feeding and unloading and belt folding. PLC intelligent operation system is safe and easy to operate.

5. Environmental protection and high efficiency, energy-saving and oil-saving equipment, add water spray dust suppression device, iron removal device, noise reduction equipment, etc. to meet the environmental protection standards without pressure. In addition, the hybrid operation of oil and electricity is adopted, which can save energy and fuel, and provide various energy supply modes. Users can choose freely and operate the equipment more efficiently

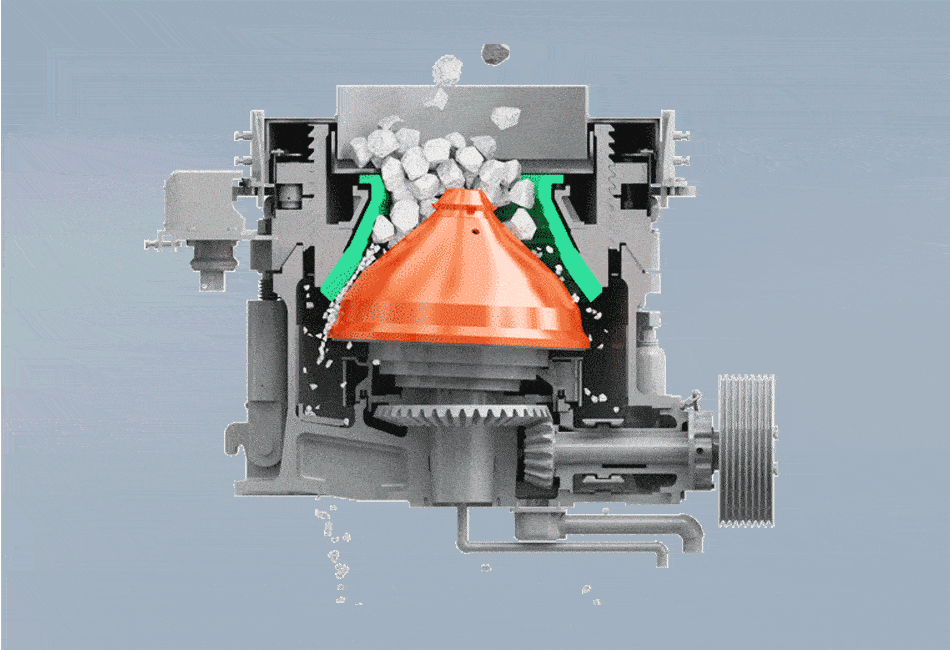

How is works

The materials are evenly transported to the cone crusher by the feeder. After the initial crushing, the cone crusher forms a closed-circuit system through the circular vibrating screen to realize the circular crushing of the materials. The finished materials are output by the conveyor for continuous crushing operation. The moving crushing station of tire cone crushing + vibrating screen can remove the circular vibrating screen according to the actual production needs, and realize the primary crushing of materials directly. It is used with other crushing equipment, which is convenient and flexible.

Technical Specifications

Model (Primary Stage)YDPZ57-8530YDPZ80-8530YDPZ69-9638YDPZ96-9638YDPZ75-1142YDPZ106-1142YDPZ116-1242YDPZ116-1242
Vibrating FeederZSW8530ZSW8530ZSW9638ZSW9638ZSW1142ZSW1142ZSW1142ZSW1142
Jaw CrusherPE500×750C80PE600×900C96PE750×1060CJ106CJ116CJ116
Feeding Size(mm)≤425≤400≤500≤480≤630≤580≤680≤680
Belt ConveyorB650B650B800B800B1000B1000B1000B1000
Motor Power (kw)7.5+45+47.5+55+411+55+411+90+415+110+415+110+415+132+415+132+4
Capacity (t/h)40-13050-16090-18060-160110-380150-300200-400200-400
Overall Size (mm)10000x2300x402010000x2300x402011500x2300x412011600x2250x371012500x2550x457012850x2280x395013000x2550x415013000x2550x4150
Model (Secondary Stage)YDPZ1210- 1548YDPZ900- 1548YDPZ1214- 1860YDPZ160- 1860YDPZ1315- 2160YDPZ300- 2160YDPZ1320- 2460YDPZ400- 2460
CrusherPF1210PYB900PFW1214CS160PFW1315HP300PFW1320HP400
Feeding Size(mm)≤400≤115≤430≤205≤500≤210≤500≤250
Capacity (t/h)70-13050-900100-180109-349130-220110-380160-350180-560
Power (kw)9055132160200220250280
Vibrating Screen3YK15483YK15483YK18603YK18603YK21603YK21603YK24603YK2460
Capacity (t/h)30-27530-27565-58665-58681-72081-720100-810100-810
Power (kw)1515222230303030
Belt ConveyorB650B650B800B800B1000B1000B1000B1000
Plant Capacity (t/h)60-10060-10080-15080-150130-250130-250200-280240-320
Overall Size (mm)12500×2500×560012500×2500×560014500×2890×660014500×2890×660015500×2960×685015500×2960×685014500x2980x717016500×2960×7170

Particle Size

Crushed product size
