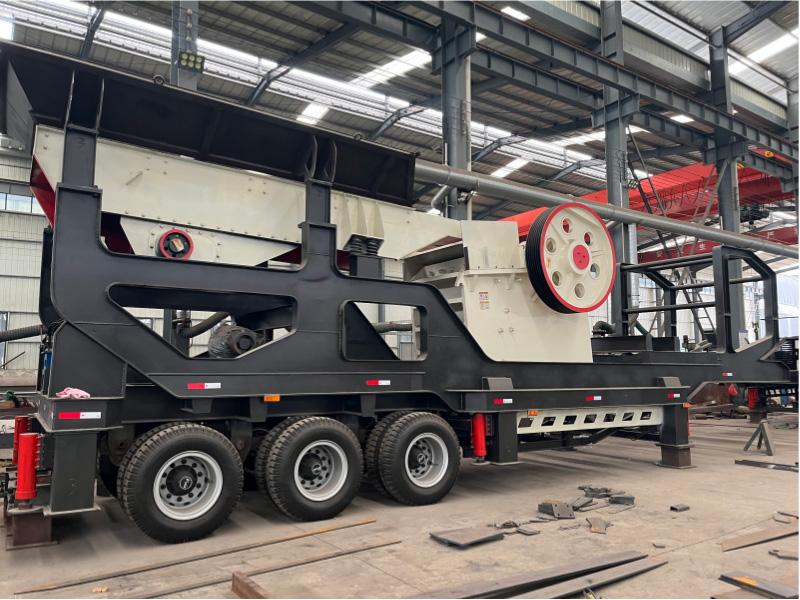

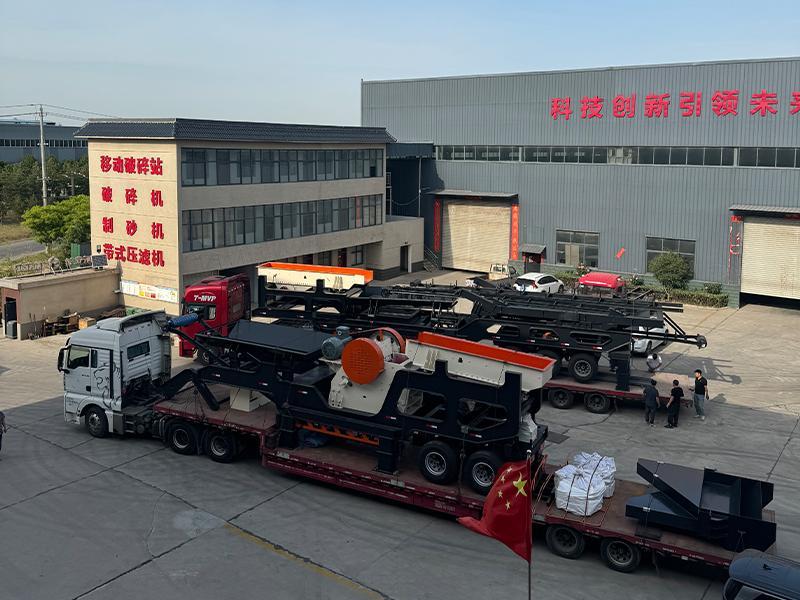

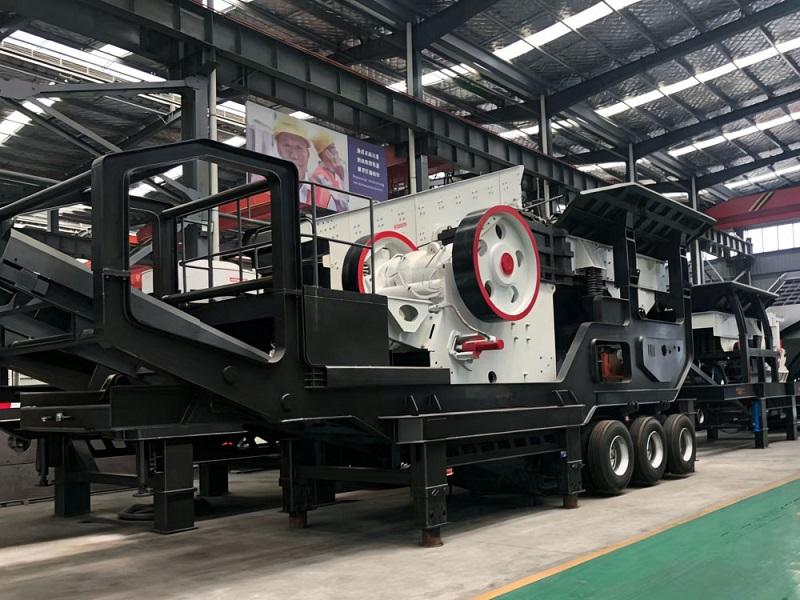

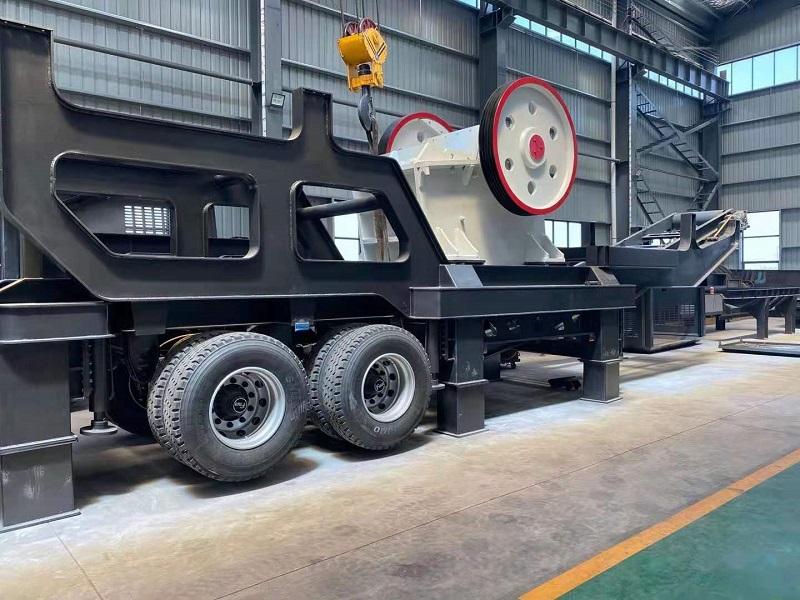

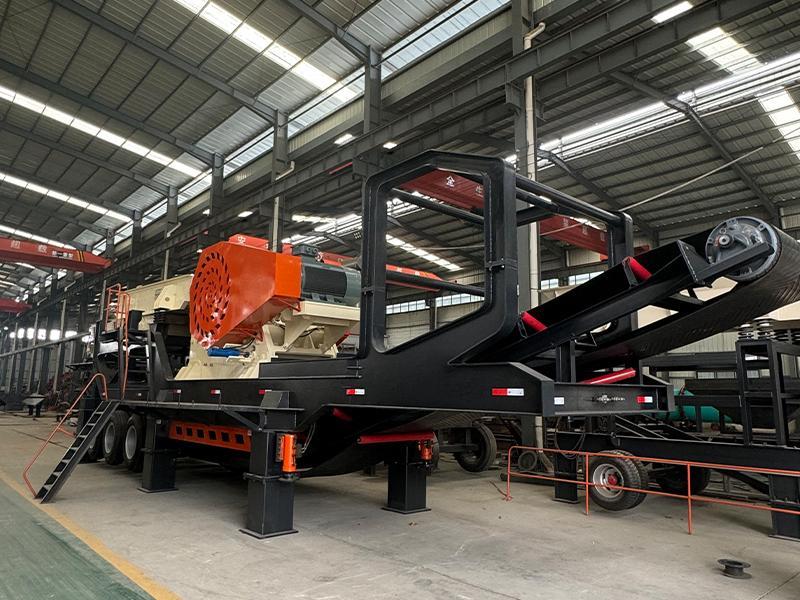

    Jaw mobile crushing station
    Jaw mobile crushing station
    Jaw mobile crushing station
    Jaw mobile crushing station
    Crushing station series
    Jaw mobile crushing station
    Feed size

    ≤930mm

    Suitable Materials

    Materials such as iron ore, river pebbles, marble, limestone, basalt, diabase, ore tailings, and construction waste.

    GET A QUOTE ONLINE CHAT
    SHARE THIS:

    Product Description

    Jaw mobile crushing station is mainly composed of feeder, jaw crusher and belt conveyor, with the output of 85 ~ 650 tons per hour. The machine adopts integrated group operation mode, which can work alone, eliminates the complex site infrastructure and auxiliary facilities installation operation of separated components, and reduces the man hour consumption. Suitable for construction waste treatment, construction waste crushing, etc.

    How to choose suitable Jaw mobile crushing station?

    1. Unit integration. It can be operated directly, eliminating tedious infrastructure installation and man hour consumption.

    2. It adopts ship type steel frame structure, low chassis, light weight, reasonable volume control, small turning radius, flexible and fashionable modeling, which can meet the needs of customers to the maximum extent.

    3. The feeding guard board is hydraulically lifted, convenient for loading and unloading, convenient for fixing, stable and reliable.

    4. The feeding guard board adopts a hierarchical double-layer structure, which provides a prerequisite for the expansion and personalized widening of the guard board.

    5. The belt conveyor can be controlled to adjust the height and height. The iron remover is equipped with automatic lifting adjustment.

    How is works

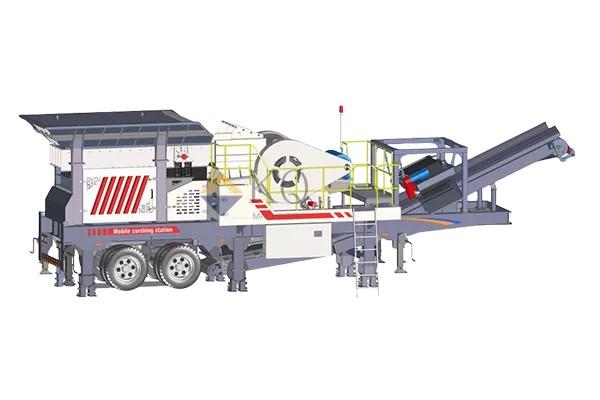

    The materials are evenly transported to the crusher by the feeder. After the preliminary crushing by the jaw crusher, a closed-circuit system is formed through the circular vibrating screen to realize the circular crushing of the materials. The finished materials are output by the conveyor for continuous crushing operation. The moving crushing station can remove the circular vibrating screen according to the actual production needs, and realize the primary crushing of materials directly. It can be used together with other crushing equipment, and the operation is convenient and flexible.

    Technical Specifications

    Model (Primary Stage)YDPZ57-8530YDPZ80-8530YDPZ69-9638YDPZ96-9638YDPZ75-1142YDPZ106-1142YDPZ116-1242YDPZ116-1242
    Vibrating FeederZSW8530ZSW8530ZSW9638ZSW9638ZSW1142ZSW1142ZSW1142ZSW1142
    Jaw CrusherPE500×750C80PE600×900C96PE750×1060CJ106CJ116CJ116
    Feeding Size(mm)≤425≤400≤500≤480≤630≤580≤680≤680
    Belt ConveyorB650B650B800B800B1000B1000B1000B1000
    Motor Power (kw)7.5+45+47.5+55+411+55+411+90+415+110+415+110+415+132+415+132+4
    Capacity (t/h)40-13050-16090-18060-160110-380150-300200-400200-400
    Overall Size (mm)10000x2300x402010000x2300x402011500x2300x412011600x2250x371012500x2550x457012850x2280x395013000x2550x415013000x2550x4150
    Model (Secondary Stage)YDPZ1210- 1548YDPZ900- 1548YDPZ1214- 1860YDPZ160- 1860YDPZ1315- 2160YDPZ300- 2160YDPZ1320- 2460YDPZ400- 2460
    CrusherPF1210PYB900PFW1214CS160PFW1315HP300PFW1320HP400
    Feeding Size(mm)≤400≤115≤430≤205≤500≤210≤500≤250
    Capacity (t/h)70-13015-90100-180109-349130-220110-380160-350180-560
    Power (kw)9055132160200220250280
    Vibrating Screen3YK15483YK15483YK18603YK18603YK21603YK21603YK24603YK2460
    Capacity (t/h)30-27530-27565-58665-58681-72081-720100-810100-810
    Power (kw)1515222230303030
    Belt ConveyorB650B650B800B800B1000B1000B1000B1000
    Plant Capacity (t/h)40-10060-10080-15080-150130-250130-250200-280240-320

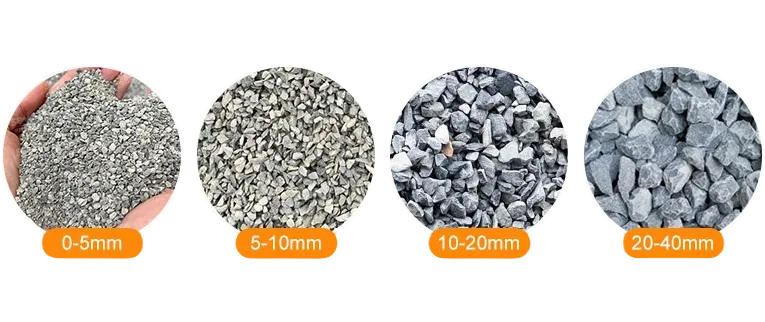

    Particle Size

    Crushed product size
