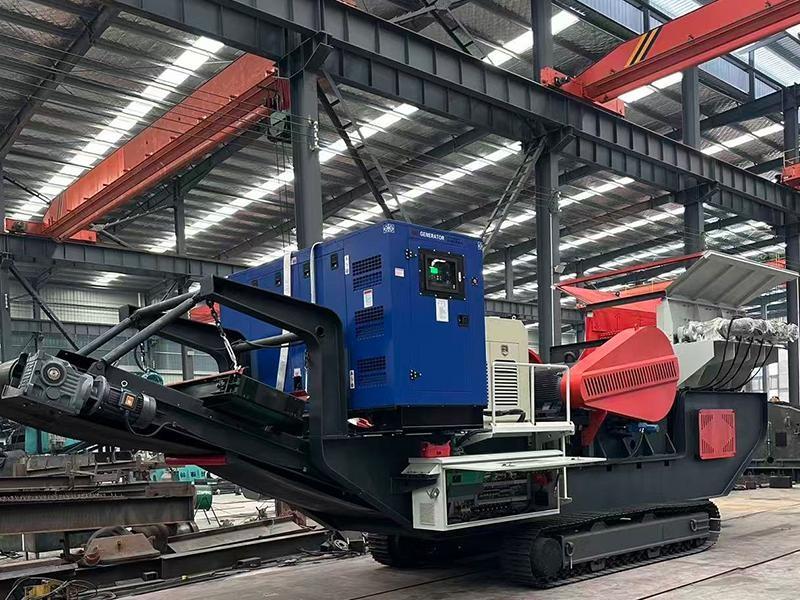

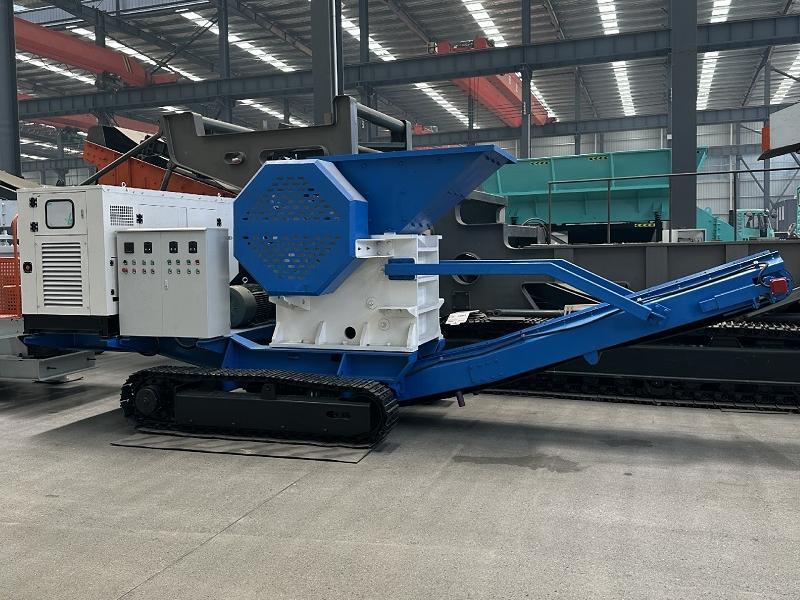

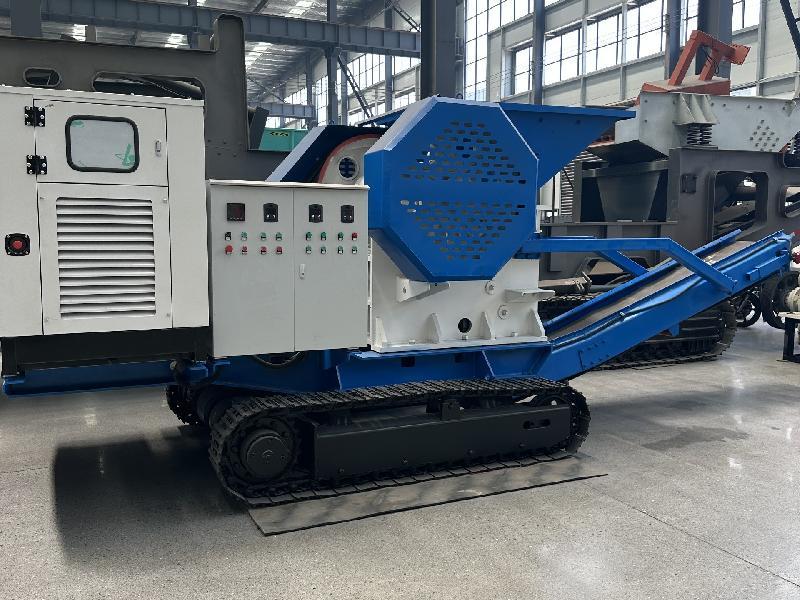

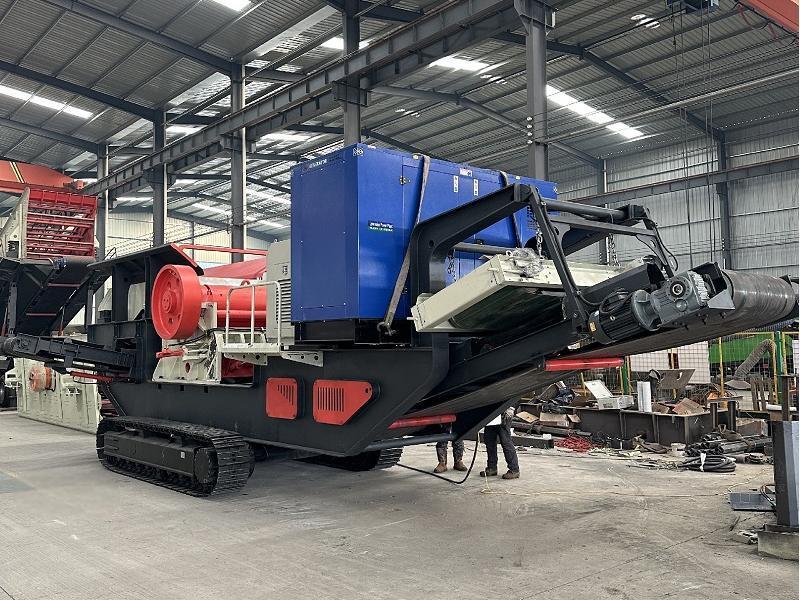

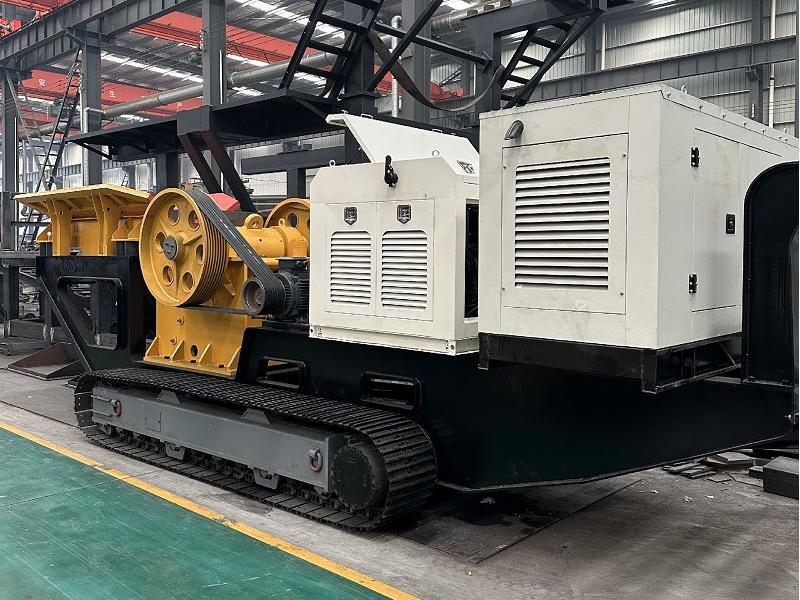

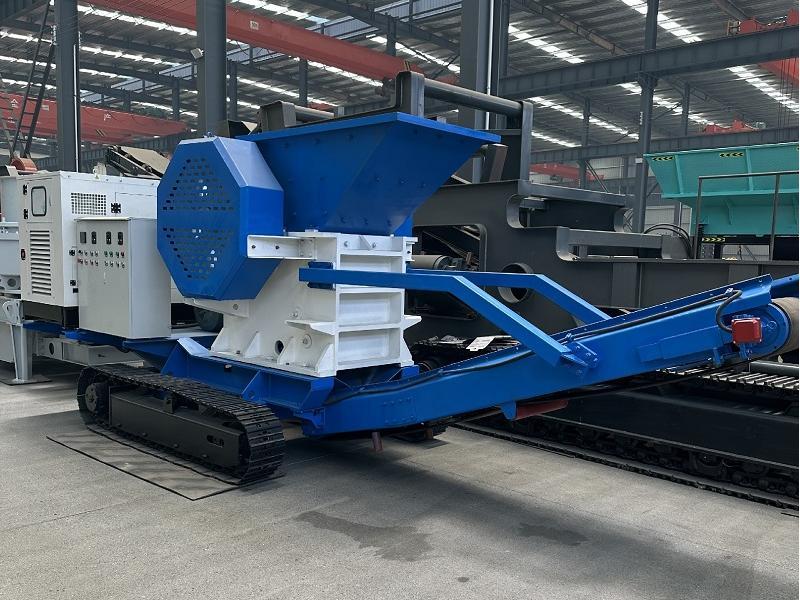

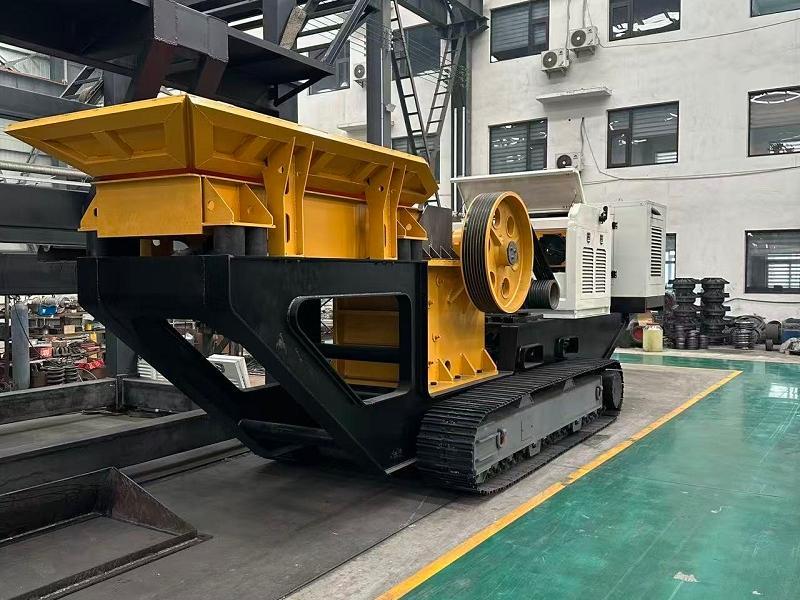

Crawler mobile crushing station
Feed size

0-950mm

Suitable Materials

Diabase, river pebbles, granite, basalt, limestone, gold ore, iron ore, etc.

SHARE THIS:

Product Description

Crawler type hydraulic driving mobile crusher is the mobile crushing and screening equipment with full hydraulic driving crawler vehicle chassis to meet the market demand. The crawler mobile crusher is mainly used for the processing of materials that often need to be relocated, such as metallurgy, chemical industry, building materials, hydropower and so on, especially for the operation of mobile stones such as expressways, railways, hydropower projects, etc. users can adopt various configuration forms according to the type, scale and requirements of processed raw materials.

How to choose suitable Crawler mobile crushing station?

1. The power system with sufficient power, reliable performance and excellent performance adopts Cummins diesel engine with low fuel consumption, low noise and reliable performance, providing a reliable, economic and environmental protection power source. The engine can be equipped with military low-temperature preheating start-up device, so that the equipment can be easily started in - 25C ° low-temperature environment.

2. The ship type structure has strong adaptability, all steel ship structure chassis has the characteristics of high strength, low grounding pressure, and has good adaptability to mountain and wetland.

3. Large driving force, strong torque, torque travel motor, large driving force and high reliability. The walking system adopts full power variable open hydraulic system with excellent performance and high reliability. It can make full use of the power of the engine. The main hydraulic components (pumps, valves, etc.) are imported from Japan to provide reliable power guarantee for the walking system.

4. Stepless variable speed travel imported servo pilot operation system, easy to operate, accurate control, can realize stepless variable speed travel.

5. Mature crushing equipment crushing and screening equipment are the mature products independently produced by the company, with compact structure, stable performance and reliability.

6. Hybrid energy device, hybrid pressure energy device and dual power intelligent transfer switch can be selected, which can make full use of local power resources, save operation cost and reduce CO2 and NOx emissions. In case of power interruption or under voltage, the diesel generator will be automatically switched to generate electricity to ensure the continuous operation of the equipment.

How is works

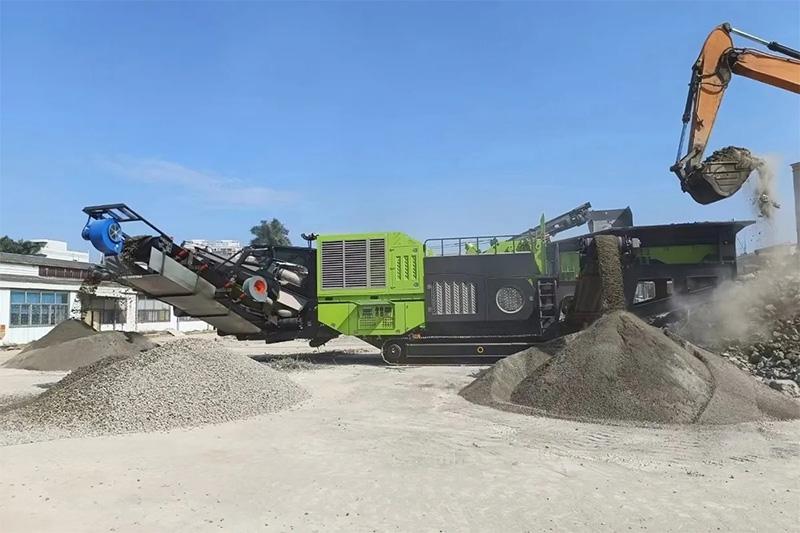

The materials are evenly transported to crawler type hydraulic driving crushing station by bucket elevator through feeder. After preliminary crushing by crusher, the closed-circuit system is composed of circular vibrating screen to realize the circulation crushing of materials. The materials meeting the requirements of particle size are exported by the conveyor to achieve the production purpose. According to the actual production requirements, the circular vibrating screen can be removed, and the material can be preliminarily crushed, and then operated with other crushing equipment.

Technical Specifications

ModelYMC80YMC96YMC106YMC116YMC120
FeederModelGZD8035GZD9638GZD1142GZD1142GZD1242
Feeding Capacity60-120t/h100-200t/h200-300t/h200-300t/h300-400t/h
Feeding Height2900mm3750mm3900mm3900mm3900mm
Volume2.2m³3.2m³3.2m³3.2m³3.2m³
Power2×3.7Kw2×5.5Kw2×5.5Kw2×5.5Kw2×7.5Kw

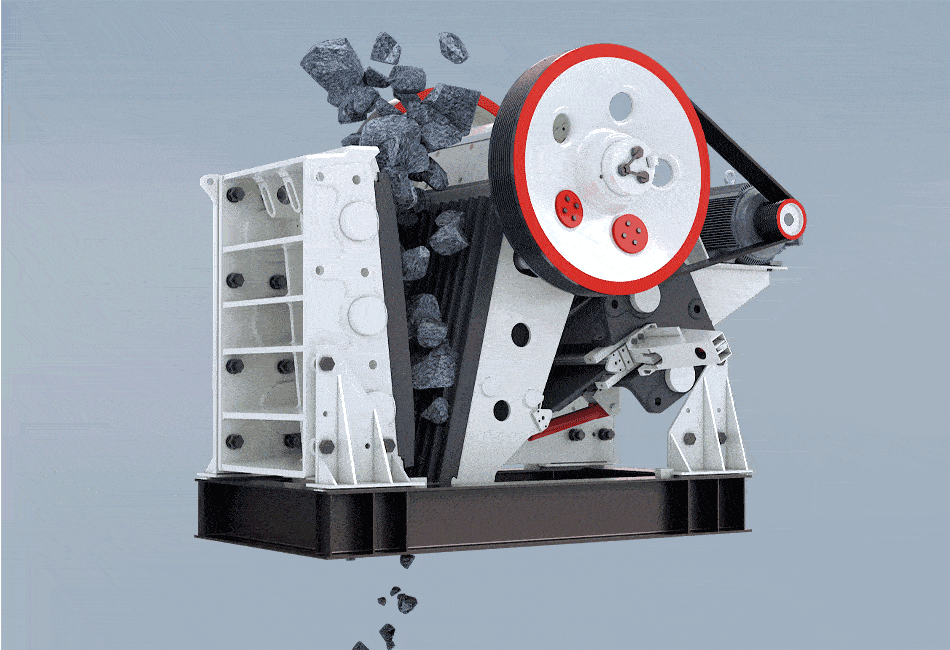

Jaw CrusherModelC80C96C106C116C120
Power55Kw90Kw132Kw132Kw160Kw
Discharge AdjustmentHydraulicHydraulicHydraulicHydraulicHydraulic
Main Discharge BeltSize(Width x Length)800×9000mm1000×12000mm1000×12000mm1200×13000mm1200×13000mm
Unloading Height2400mm2900mm2900mm3200mm3200mm
Power7.5Kw11Kw11Kw15Kw15Kw
Side Discharge BeltSize(Width x Length)500×3800mm500×3800mm500×3800mm500×3800mm500×3800mm
Unloading Height1800mm1800mm1800mm1800mm1800mm
Power3Kw3Kw3Kw3Kw3Kw
Iron RemoverModelRCYD800RCYD1000RCYD1000RCYD1200RCYD1200
GeneratorPrimary Power163Kw225Kw310Kw310Kw403Kw
Standby Power180Kw250Kw345Kw345Kw448Kw
GeneratorStructure6-Cylinder Inline6-Cylinder V-shape6-Cylinder V-shape6-Cylinder V-shape8-Cylinder V-shape
Primary Power150Kw200Kw280Kw280Kw360Kw
Standby Power165Kw220Kw300Kw300Kw390Kw
Dual PowerDriving ConceptDiesel-electric DriveDiesel-electric DriveDiesel-electric DriveDiesel-electric DriveDiesel-electric Drive
Transport ParametersTransport Length12500mm14500mm15000mm15000mm15500mm
Transport Width2850mm2950mm3000mm3200mm3200mm
Transport Height3550mm3550mm3600mm3600mm3700mm
Installed Power78.1Kw+70Kw121Kw+70Kw163Kw+90Kw168Kw+115Kw200Kw+115Kw
Complete Dry Fog Dust SuppressionOptionalOptionalOptionalOptionalOptional
Capacity80-125t/h100-250t/h160-360t/h200-450t/h300-520t/h

Particle Size

Crushed product size
